Deployment Guide — Infrastructure & CI/CD

Версия: 1.0
Дата: 19.04.2026
Статус: Черновик

Обзор

Deployment Guide определяет полную инфраструктуру и процессы deployment для vitrip.store согласно технологическому стеку "Infrastructure | Docker + Kubernetes | Контейнеризация, горизонтальное масштабирование" из Архитектура платформы. Включает Kubernetes manifests для всех микросервисов из Business Services, PostgreSQL и Redis из Database Schema и Storage Layer, Traefik API Gateway из API Layer, и Prometheus monitoring. Покрывает CI/CD pipeline для deployment процессов и infrastructure as code.

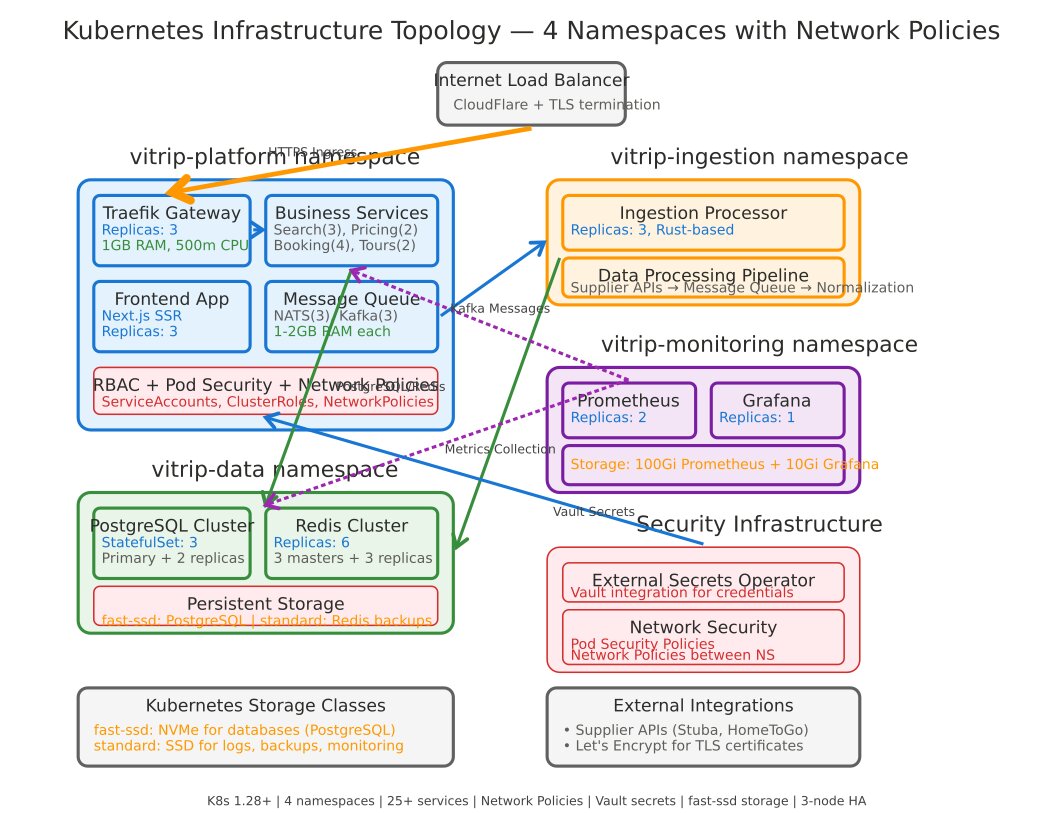

Infrastructure Topology: См. диаграмму vitrip_infrastructure_topology.jpg — полная схема Kubernetes кластера с сервисами, networking и storage.

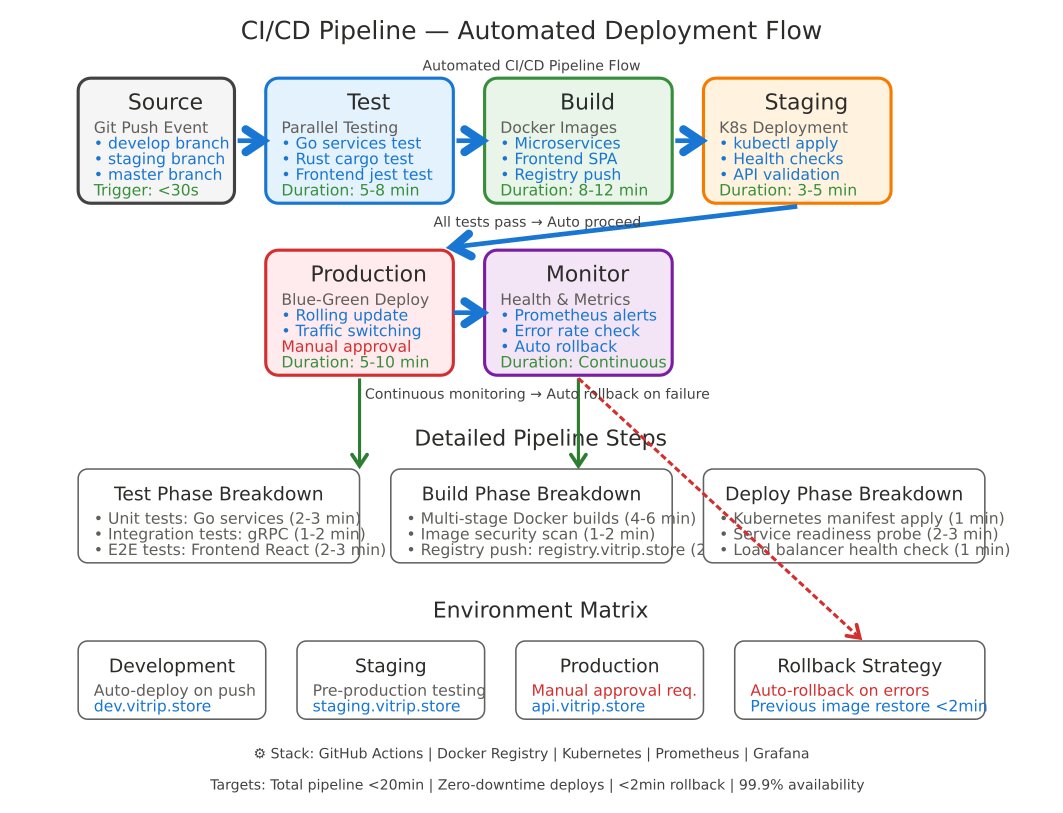

CI/CD Pipeline: См. диаграмму vitrip_cicd_pipeline.jpg — автоматизированный pipeline от git push до production deployment с тестированием и мониторингом.

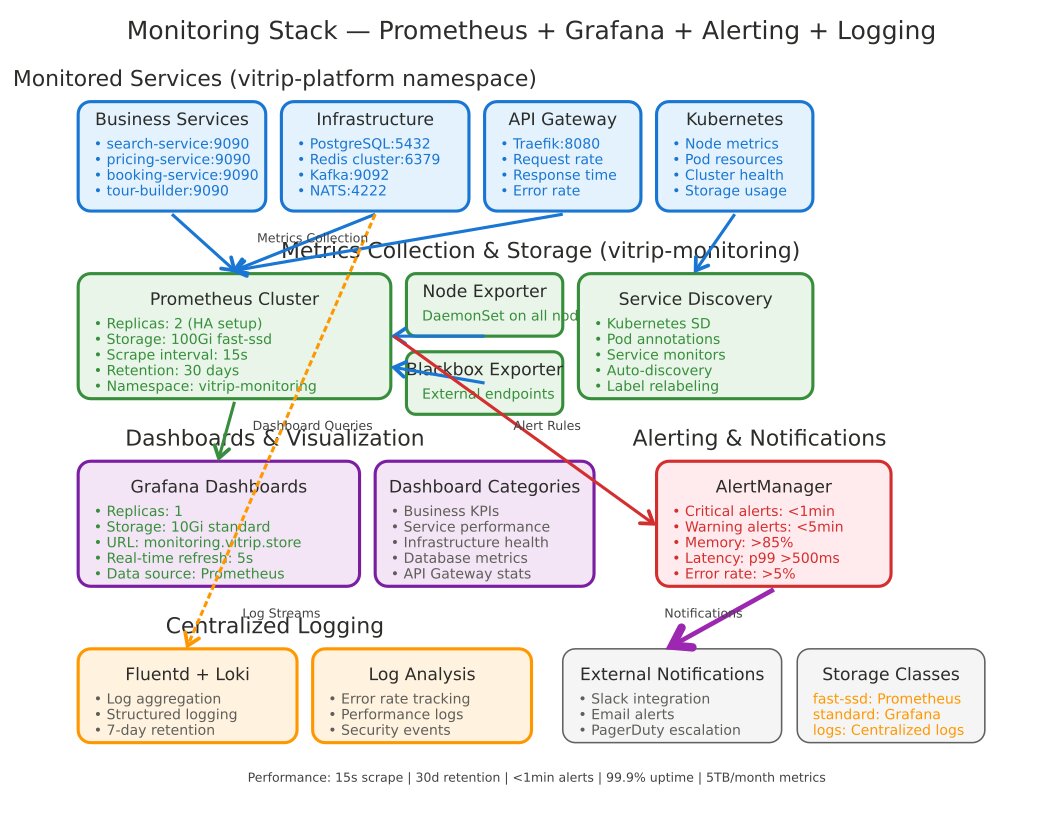

Monitoring & Observability: См. диаграмму vitrip_monitoring_stack.jpg — Prometheus, Grafana, logging и alerting для production operations.

Kubernetes Cluster Setup

Cluster Requirements

# Минимальные требования согласно overview/index.md
Kubernetes Version: >= 1.28
Node Requirements:
  Control Plane: 3 nodes (2 CPU, 4GB RAM, 50GB SSD)
  Worker Nodes: 5+ nodes (4 CPU, 8GB RAM, 100GB SSD)

Storage Classes:
  - fast-ssd: NVMe SSD для баз данных
  - standard: HDD для логов и backups

Network Requirements:
  - CNI: Calico or Cilium
  - LoadBalancer: MetalLB или cloud provider LB
  - Ingress: Traefik (согласно overview/layers.md)

Security:
  - RBAC enabled
  - Pod Security Standards: restricted
  - Network Policies enabled
  - Secrets encryption at rest

Namespace Configuration

# namespaces.yaml
apiVersion: v1
kind: Namespace
metadata:
  name: vitrip-platform
  labels:
    environment: production
    application: vitrip
---
apiVersion: v1
kind: Namespace
metadata:
  name: vitrip-data
  labels:
    environment: production
    tier: data
---
apiVersion: v1
kind: Namespace
metadata:
  name: vitrip-monitoring
  labels:
    environment: production
    tier: monitoring
---
apiVersion: v1
kind: Namespace
metadata:
  name: vitrip-ingestion
  labels:
    environment: production
    tier: processing

Database Infrastructure

PostgreSQL Deployment

Согласно Database Schema PostgreSQL с PostGIS, ltree extensions.

# postgresql.yaml
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: postgresql
  namespace: vitrip-data
spec:
  serviceName: postgresql
  replicas: 3  # Primary + 2 read replicas
  selector:
    matchLabels:
      app: postgresql
  template:
    metadata:
      labels:
        app: postgresql
    spec:
      containers:
      - name: postgresql
        image: postgis/postgis:15-3.3
        env:
        - name: POSTGRES_DB
          value: "vitrip"
        - name: POSTGRES_USER
          valueFrom:
            secretKeyRef:
              name: postgres-credentials
              key: username
        - name: POSTGRES_PASSWORD
          valueFrom:
            secretKeyRef:
              name: postgres-credentials
              key: password
        - name: POSTGRES_SHARED_PRELOAD_LIBRARIES
          value: "pg_stat_statements,auto_explain"
        ports:
        - containerPort: 5432
          name: postgres
        resources:
          requests:
            memory: "4Gi"
            cpu: "1000m"
          limits:
            memory: "8Gi"
            cpu: "2000m"
        volumeMounts:
        - name: postgres-storage
          mountPath: /var/lib/postgresql/data
        - name: postgres-config
          mountPath: /etc/postgresql/postgresql.conf
          subPath: postgresql.conf
        livenessProbe:
          exec:
            command:
            - pg_isready
            - -U
            - $(POSTGRES_USER)
          initialDelaySeconds: 30
          periodSeconds: 10
        readinessProbe:
          exec:
            command:
            - pg_isready
            - -U
            - $(POSTGRES_USER)
          initialDelaySeconds: 5
          periodSeconds: 5
      volumes:
      - name: postgres-config
        configMap:
          name: postgres-config
  volumeClaimTemplates:
  - metadata:
      name: postgres-storage
    spec:
      accessModes: ["ReadWriteOnce"]
      storageClassName: fast-ssd
      resources:
        requests:
          storage: 500Gi

---
apiVersion: v1
kind: Service
metadata:
  name: postgresql
  namespace: vitrip-data
spec:
  clusterIP: None
  selector:
    app: postgresql
  ports:
  - port: 5432
    targetPort: 5432

---
apiVersion: v1
kind: ConfigMap
metadata:
  name: postgres-config
  namespace: vitrip-data
data:
  postgresql.conf: |
    # Performance tuning для vitrip workload
    shared_buffers = 2GB
    effective_cache_size = 6GB
    work_mem = 64MB
    maintenance_work_mem = 512MB

    # Connection settings
    max_connections = 200

    # Logging согласно monitoring requirements
    log_statement = 'mod'
    log_min_duration_statement = 1000

    # Extensions для reference/database-schema.md
    shared_preload_libraries = 'pg_stat_statements,auto_explain'

    # PostGIS settings
    max_locks_per_transaction = 256

PostgreSQL Initialization Job

# postgres-init-job.yaml
apiVersion: batch/v1
kind: Job
metadata:
  name: postgres-init
  namespace: vitrip-data
spec:
  template:
    spec:
      restartPolicy: OnFailure
      containers:
      - name: postgres-init
        image: postgis/postgis:15-3.3
        command:
        - /bin/bash
        - -c
        - |
          # Ожидание готовности PostgreSQL
          until pg_isready -h postgresql -U $POSTGRES_USER; do
            echo "Waiting for PostgreSQL..."
            sleep 2
          done

          # Создание extensions согласно reference/database-schema.md
          PGPASSWORD=$POSTGRES_PASSWORD psql -h postgresql -U $POSTGRES_USER -d vitrip -c "
            CREATE EXTENSION IF NOT EXISTS postgis;
            CREATE EXTENSION IF NOT EXISTS postgis_topology;
            CREATE EXTENSION IF NOT EXISTS ltree;
            CREATE EXTENSION IF NOT EXISTS \"uuid-ossp\";
            CREATE EXTENSION IF NOT EXISTS pgcrypto;
            CREATE EXTENSION IF NOT EXISTS unaccent;
            CREATE EXTENSION IF NOT EXISTS pg_trgm;
            CREATE EXTENSION IF NOT EXISTS btree_gin;
            CREATE EXTENSION IF NOT EXISTS btree_gist;
          "

          # Создание схем из reference/database-schema.md
          PGPASSWORD=$POSTGRES_PASSWORD psql -h postgresql -U $POSTGRES_USER -d vitrip -c "
            CREATE SCHEMA IF NOT EXISTS hotels;
            CREATE SCHEMA IF NOT EXISTS content;
            CREATE SCHEMA IF NOT EXISTS bookings;
            CREATE SCHEMA IF NOT EXISTS users;
          "

          echo "PostgreSQL initialization completed"
        env:
        - name: POSTGRES_USER
          valueFrom:
            secretKeyRef:
              name: postgres-credentials
              key: username
        - name: POSTGRES_PASSWORD
          valueFrom:
            secretKeyRef:
              name: postgres-credentials
              key: password

Redis Cluster

Согласно Storage Layer Redis кеширование с TTL стратегиями.

# redis.yaml
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: redis
  namespace: vitrip-data
spec:
  serviceName: redis
  replicas: 6  # 3 masters + 3 replicas for HA
  selector:
    matchLabels:
      app: redis
  template:
    metadata:
      labels:
        app: redis
    spec:
      containers:
      - name: redis
        image: redis:7.2-alpine
        command:
        - redis-server
        - /etc/redis/redis.conf
        ports:
        - containerPort: 6379
          name: redis
        - containerPort: 16379
          name: cluster-bus
        resources:
          requests:
            memory: "2Gi"
            cpu: "500m"
          limits:
            memory: "4Gi"
            cpu: "1000m"
        volumeMounts:
        - name: redis-storage
          mountPath: /data
        - name: redis-config
          mountPath: /etc/redis
        livenessProbe:
          exec:
            command:
            - redis-cli
            - ping
          initialDelaySeconds: 30
          periodSeconds: 10
        readinessProbe:
          exec:
            command:
            - redis-cli
            - ping
          initialDelaySeconds: 5
          periodSeconds: 5
      volumes:
      - name: redis-config
        configMap:
          name: redis-config
  volumeClaimTemplates:
  - metadata:
      name: redis-storage
    spec:
      accessModes: ["ReadWriteOnce"]
      storageClassName: fast-ssd
      resources:
        requests:
          storage: 50Gi

---
apiVersion: v1
kind: Service
metadata:
  name: redis
  namespace: vitrip-data
spec:
  clusterIP: None
  selector:
    app: redis
  ports:
  - port: 6379
    targetPort: 6379
    name: redis
  - port: 16379
    targetPort: 16379
    name: cluster-bus

---
apiVersion: v1
kind: ConfigMap
metadata:
  name: redis-config
  namespace: vitrip-data
data:
  redis.conf: |
    # Cluster configuration
    cluster-enabled yes
    cluster-config-file nodes.conf
    cluster-node-timeout 5000

    # Persistence для production
    save 900 1
    save 300 10
    save 60 10000

    # Memory management согласно reference/storage.md
    maxmemory 3gb
    maxmemory-policy allkeys-lru

    # Performance tuning
    tcp-keepalive 300
    timeout 0

Message Queue Infrastructure

NATS Cluster

Согласно технологическому стеку "Message queue | NATS → Kafka" из Архитектура платформы.

# nats.yaml
apiVersion: nats.io/v1alpha2
kind: NatsCluster
metadata:
  name: nats
  namespace: vitrip-platform
spec:
  size: 3
  version: "2.10.7"

  pod:
    resources:
      requests:
        memory: "1Gi"
        cpu: "500m"
      limits:
        memory: "2Gi"
        cpu: "1000m"

  auth:
    enableServiceAccounts: true

  config:
    cluster:
      port: 6222

    jetstream:
      enabled: true
      memStore:
        enabled: true
        maxSize: "1Gi"
      fileStore:
        enabled: true
        maxSize: "10Gi"

  storage:
    storageClassName: fast-ssd
    size: "20Gi"

Kafka Cluster

# kafka.yaml
apiVersion: kafka.strimzi.io/v1beta2
kind: Kafka
metadata:
  name: kafka-cluster
  namespace: vitrip-platform
spec:
  kafka:
    version: 3.6.0
    replicas: 3

    listeners:
      - name: plain
        port: 9092
        type: internal
        tls: false
      - name: tls
        port: 9093
        type: internal
        tls: true

    config:
      offsets.topic.replication.factor: 3
      transaction.state.log.replication.factor: 3
      transaction.state.log.min.isr: 2
      default.replication.factor: 3
      min.insync.replicas: 2
      inter.broker.protocol.version: "3.6"

    storage:
      type: persistent-claim
      size: 100Gi
      class: fast-ssd

    resources:
      requests:
        memory: 2Gi
        cpu: "1000m"
      limits:
        memory: 4Gi
        cpu: "2000m"

  zookeeper:
    replicas: 3
    storage:
      type: persistent-claim
      size: 10Gi
      class: fast-ssd
    resources:
      requests:
        memory: 1Gi
        cpu: "500m"
      limits:
        memory: 2Gi
        cpu: "1000m"

  entityOperator:
    topicOperator: {}
    userOperator: {}

Business Services Deployment

Search Service

Согласно SearchService из Business Services на Go с gRPC.

# search-service.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: search-service
  namespace: vitrip-platform
  labels:
    app: search-service
    component: business-service
spec:
  replicas: 3
  selector:
    matchLabels:
      app: search-service
  template:
    metadata:
      labels:
        app: search-service
        component: business-service
    spec:
      containers:
      - name: search-service
        image: vitrip/search-service:v1.0
        ports:
        - containerPort: 8080
          name: grpc
        - containerPort: 9090
          name: metrics
        env:
        - name: POSTGRES_URL
          valueFrom:
            secretKeyRef:
              name: postgres-credentials
              key: url
        - name: REDIS_URL
          value: "redis:6379"
        - name: NATS_URL
          value: "nats://nats:4222"
        - name: LOG_LEVEL
          value: "info"
        - name: GOMAXPROCS
          value: "2"
        resources:
          requests:
            memory: "512Mi"
            cpu: "250m"
          limits:
            memory: "1Gi"
            cpu: "500m"
        livenessProbe:
          grpc:
            port: 8080
          initialDelaySeconds: 30
          periodSeconds: 10
        readinessProbe:
          grpc:
            port: 8080
          initialDelaySeconds: 5
          periodSeconds: 5
        securityContext:
          allowPrivilegeEscalation: false
          runAsNonRoot: true
          runAsUser: 65534
          capabilities:
            drop:
            - ALL

---
apiVersion: v1
kind: Service
metadata:
  name: search-service
  namespace: vitrip-platform
  labels:
    app: search-service
spec:
  selector:
    app: search-service
  ports:
  - port: 8080
    targetPort: 8080
    name: grpc
  - port: 9090
    targetPort: 9090
    name: metrics

Pricing Service

# pricing-service.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: pricing-service
  namespace: vitrip-platform
  labels:
    app: pricing-service
    component: business-service
spec:
  replicas: 2
  selector:
    matchLabels:
      app: pricing-service
  template:
    metadata:
      labels:
        app: pricing-service
        component: business-service
    spec:
      containers:
      - name: pricing-service
        image: vitrip/pricing-service:v1.0
        ports:
        - containerPort: 8080
          name: grpc
        - containerPort: 9090
          name: metrics
        env:
        - name: POSTGRES_URL
          valueFrom:
            secretKeyRef:
              name: postgres-credentials
              key: url
        - name: REDIS_URL
          value: "redis:6379"
        - name: NATS_URL
          value: "nats://nats:4222"
        - name: EXTERNAL_EXCHANGE_API
          valueFrom:
            secretKeyRef:
              name: external-apis
              key: exchange-api-key
        resources:
          requests:
            memory: "256Mi"
            cpu: "125m"
          limits:
            memory: "512Mi"
            cpu: "250m"
        livenessProbe:
          grpc:
            port: 8080
          initialDelaySeconds: 30
          periodSeconds: 10
        readinessProbe:
          grpc:
            port: 8080
          initialDelaySeconds: 5
          periodSeconds: 5

---
apiVersion: v1
kind: Service
metadata:
  name: pricing-service
  namespace: vitrip-platform
spec:
  selector:
    app: pricing-service
  ports:
  - port: 8080
    targetPort: 8080
    name: grpc
  - port: 9090
    targetPort: 9090
    name: metrics

Booking Service

# booking-service.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: booking-service
  namespace: vitrip-platform
  labels:
    app: booking-service
    component: business-service
spec:
  replicas: 4  # Critical service, более высокая доступность
  selector:
    matchLabels:
      app: booking-service
  template:
    metadata:
      labels:
        app: booking-service
        component: business-service
    spec:
      containers:
      - name: booking-service
        image: vitrip/booking-service:v1.0
        ports:
        - containerPort: 8080
          name: grpc
        - containerPort: 9090
          name: metrics
        env:
        - name: POSTGRES_URL
          valueFrom:
            secretKeyRef:
              name: postgres-credentials
              key: url
        - name: REDIS_URL
          value: "redis:6379"
        - name: NATS_URL
          value: "nats://nats:4222"
        - name: SUPPLIER_STUBA_URL
          valueFrom:
            secretKeyRef:
              name: supplier-apis
              key: stuba-url
        - name: SUPPLIER_HOMETOGO_URL
          valueFrom:
            secretKeyRef:
              name: supplier-apis
              key: hometogo-url
        resources:
          requests:
            memory: "512Mi"
            cpu: "250m"
          limits:
            memory: "1Gi"
            cpu: "500m"
        livenessProbe:
          grpc:
            port: 8080
          initialDelaySeconds: 30
          periodSeconds: 10
        readinessProbe:
          grpc:
            port: 8080
          initialDelaySeconds: 5
          periodSeconds: 5

---
apiVersion: v1
kind: Service
metadata:
  name: booking-service
  namespace: vitrip-platform
spec:
  selector:
    app: booking-service
  ports:
  - port: 8080
    targetPort: 8080
    name: grpc
  - port: 9090
    targetPort: 9090
    name: metrics

Tour Builder Service

# tour-builder-service.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: tour-builder-service
  namespace: vitrip-platform
  labels:
    app: tour-builder-service
    component: business-service
spec:
  replicas: 2
  selector:
    matchLabels:
      app: tour-builder-service
  template:
    metadata:
      labels:
        app: tour-builder-service
        component: business-service
    spec:
      containers:
      - name: tour-builder-service
        image: vitrip/tour-builder-service:v1.0
        ports:
        - containerPort: 8080
          name: grpc
        - containerPort: 9090
          name: metrics
        env:
        - name: POSTGRES_URL
          valueFrom:
            secretKeyRef:
              name: postgres-credentials
              key: url
        - name: REDIS_URL
          value: "redis:6379"
        - name: NATS_URL
          value: "nats://nats:4222"
        - name: PDF_GENERATOR_URL
          value: "http://pdf-generator:8080"
        resources:
          requests:
            memory: "512Mi"
            cpu: "250m"
          limits:
            memory: "1Gi"
            cpu: "500m"
        livenessProbe:
          grpc:
            port: 8080
          initialDelaySeconds: 30
          periodSeconds: 10
        readinessProbe:
          grpc:
            port: 8080
          initialDelaySeconds: 5
          periodSeconds: 5

---
apiVersion: v1
kind: Service
metadata:
  name: tour-builder-service
  namespace: vitrip-platform
spec:
  selector:
    app: tour-builder-service
  ports:
  - port: 8080
    targetPort: 8080
    name: grpc
  - port: 9090
    targetPort: 9090
    name: metrics

Data Processing Services

Ingestion Processor

Согласно Rust data processing из Ingestion Layer.

# ingestion-processor.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: ingestion-processor
  namespace: vitrip-ingestion
  labels:
    app: ingestion-processor
    component: data-processing
spec:
  replicas: 3
  selector:
    matchLabels:
      app: ingestion-processor
  template:
    metadata:
      labels:
        app: ingestion-processor
        component: data-processing
    spec:
      containers:
      - name: processor
        image: vitrip/ingestion-processor:v1.0
        env:
        - name: KAFKA_BROKERS
          value: "kafka-cluster-kafka-bootstrap:9092"
        - name: POSTGRES_URL
          valueFrom:
            secretKeyRef:
              name: postgres-credentials
              key: url
        - name: REDIS_URL
          value: "redis:6379"
        - name: RUST_LOG
          value: "info"
        - name: HOTEL_MATCHING_THRESHOLD
          value: "0.8"
        resources:
          requests:
            memory: "1Gi"
            cpu: "500m"
          limits:
            memory: "2Gi"
            cpu: "1000m"
        livenessProbe:
          httpGet:
            path: /health
            port: 9090
          initialDelaySeconds: 30
          periodSeconds: 10
        readinessProbe:
          httpGet:
            path: /ready
            port: 9090
          initialDelaySeconds: 5
          periodSeconds: 5

---
apiVersion: v1
kind: Service
metadata:
  name: ingestion-processor
  namespace: vitrip-ingestion
spec:
  selector:
    app: ingestion-processor
  ports:
  - port: 9090
    targetPort: 9090
    name: metrics

API Gateway & Load Balancer

Traefik Deployment

Согласно API Layer Traefik API Gateway с Let's Encrypt.

# traefik.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  name: traefik
  namespace: vitrip-platform

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: traefik
rules:
- apiGroups:
  - ""
  resources:
  - services
  - secrets
  - nodes
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - discovery.k8s.io
  resources:
  - endpointslices
  verbs:
  - list
  - watch
- apiGroups:
  - extensions
  - networking.k8s.io
  resources:
  - ingresses
  - ingressclasses
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - traefik.containo.us
  resources:
  - middlewares
  - tlsoptions
  - tlsstores
  - ingressroutes
  - traefikservices
  - serverstransports
  verbs:
  - get
  - list
  - watch

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: traefik
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: traefik
subjects:
- kind: ServiceAccount
  name: traefik
  namespace: vitrip-platform

---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: traefik
  namespace: vitrip-platform
  labels:
    app: traefik
    component: api-gateway
spec:
  replicas: 3
  selector:
    matchLabels:
      app: traefik
  template:
    metadata:
      labels:
        app: traefik
        component: api-gateway
    spec:
      serviceAccountName: traefik
      containers:
      - name: traefik
        image: traefik:v3.0
        args:
        - --api.dashboard=true
        - --api.insecure=false
        - --entrypoints.web.address=:80
        - --entrypoints.web.http.redirections.entrypoint.to=websecure
        - --entrypoints.web.http.redirections.entrypoint.scheme=https
        - --entrypoints.websecure.address=:443
        - --providers.kubernetes=true
        - --providers.kubernetes.ingressclass=traefik
        - --certificatesresolvers.letsencrypt.acme.email=admin@vitrip.store
        - --certificatesresolvers.letsencrypt.acme.storage=/acme/acme.json
        - --certificatesresolvers.letsencrypt.acme.httpchallenge.entrypoint=web
        - --metrics.prometheus=true
        - --metrics.prometheus.addrouters=true
        - --log.level=INFO
        ports:
        - containerPort: 80
          name: web
        - containerPort: 443
          name: websecure
        - containerPort: 8080
          name: dashboard
        - containerPort: 9100
          name: metrics
        resources:
          requests:
            memory: "256Mi"
            cpu: "125m"
          limits:
            memory: "512Mi"
            cpu: "250m"
        volumeMounts:
        - name: acme
          mountPath: /acme
        livenessProbe:
          httpGet:
            path: /ping
            port: 8080
          initialDelaySeconds: 30
          periodSeconds: 10
        readinessProbe:
          httpGet:
            path: /ping
            port: 8080
          initialDelaySeconds: 5
          periodSeconds: 5
      volumes:
      - name: acme
        persistentVolumeClaim:
          claimName: traefik-acme

---
apiVersion: v1
kind: Service
metadata:
  name: traefik
  namespace: vitrip-platform
spec:
  type: LoadBalancer
  selector:
    app: traefik
  ports:
  - port: 80
    targetPort: 80
    name: web
  - port: 443
    targetPort: 443
    name: websecure

---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: traefik-acme
  namespace: vitrip-platform
spec:
  accessModes:
  - ReadWriteOnce
  storageClassName: standard
  resources:
    requests:
      storage: 1Gi

API Gateway Routes

# api-routes.yaml
apiVersion: traefik.containo.us/v1alpha1
kind: IngressRoute
metadata:
  name: api-gateway
  namespace: vitrip-platform
spec:
  entryPoints:
  - websecure
  routes:
  - match: Host(`api.vitrip.store`) && PathPrefix(`/v1`)
    kind: Rule
    services:
    - name: api-gateway-service
      port: 8080
    middlewares:
    - name: auth-chain
    - name: rate-limit
    - name: cors-headers
  tls:
    certResolver: letsencrypt

---
apiVersion: traefik.containo.us/v1alpha1
kind: Middleware
metadata:
  name: auth-chain
  namespace: vitrip-platform
spec:
  chain:
    middlewares:
    - name: api-auth
    - name: rate-limit-check

---
apiVersion: traefik.containo.us/v1alpha1
kind: Middleware
metadata:
  name: rate-limit
  namespace: vitrip-platform
spec:
  rateLimit:
    average: 100
    burst: 200
    period: 1m

---
apiVersion: traefik.containo.us/v1alpha1
kind: Middleware
metadata:
  name: cors-headers
  namespace: vitrip-platform
spec:
  headers:
    accessControlAllowOriginList:
    - "https://vitrip.store"
    - "https://app.vitrip.store"
    accessControlAllowMethods:
    - "GET"
    - "POST"
    - "PUT"
    - "PATCH"
    - "DELETE"
    - "OPTIONS"
    accessControlAllowHeaders:
    - "Authorization"
    - "Content-Type"
    - "X-API-Key"
    accessControlExposeHeaders:
    - "X-RateLimit-Remaining"
    - "X-RateLimit-Reset"

Frontend Application

Next.js Application

Согласно Clients Layer React/Next.js frontend.

# frontend-app.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: frontend-app
  namespace: vitrip-platform
  labels:
    app: frontend-app
    component: frontend
spec:
  replicas: 3
  selector:
    matchLabels:
      app: frontend-app
  template:
    metadata:
      labels:
        app: frontend-app
        component: frontend
    spec:
      containers:
      - name: frontend-app
        image: vitrip/frontend-app:v1.0
        ports:
        - containerPort: 3000
          name: http
        env:
        - name: NEXT_PUBLIC_API_URL
          value: "https://api.vitrip.store/v1"
        - name: NODE_ENV
          value: "production"
        - name: NEXT_TELEMETRY_DISABLED
          value: "1"
        resources:
          requests:
            memory: "512Mi"
            cpu: "250m"
          limits:
            memory: "1Gi"
            cpu: "500m"
        livenessProbe:
          httpGet:
            path: /health
            port: 3000
          initialDelaySeconds: 30
          periodSeconds: 10
        readinessProbe:
          httpGet:
            path: /health
            port: 3000
          initialDelaySeconds: 5
          periodSeconds: 5

---
apiVersion: v1
kind: Service
metadata:
  name: frontend-app
  namespace: vitrip-platform
spec:
  selector:
    app: frontend-app
  ports:
  - port: 3000
    targetPort: 3000
    name: http

---
apiVersion: traefik.containo.us/v1alpha1
kind: IngressRoute
metadata:
  name: frontend-route
  namespace: vitrip-platform
spec:
  entryPoints:
  - websecure
  routes:
  - match: Host(`vitrip.store`)
    kind: Rule
    services:
    - name: frontend-app
      port: 3000
  tls:
    certResolver: letsencrypt

Monitoring Infrastructure

Prometheus Setup

Согласно "Monitoring | Prometheus + Grafana" из Архитектура платформы.

# prometheus.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: prometheus
  namespace: vitrip-monitoring
  labels:
    app: prometheus
    component: monitoring
spec:
  replicas: 2
  selector:
    matchLabels:
      app: prometheus
  template:
    metadata:
      labels:
        app: prometheus
        component: monitoring
    spec:
      containers:
      - name: prometheus
        image: prom/prometheus:v2.48.0
        args:
        - --config.file=/etc/prometheus/prometheus.yml
        - --storage.tsdb.path=/prometheus
        - --storage.tsdb.retention.time=30d
        - --web.console.libraries=/etc/prometheus/console_libraries
        - --web.console.templates=/etc/prometheus/consoles
        - --web.enable-lifecycle
        - --web.enable-admin-api
        ports:
        - containerPort: 9090
          name: prometheus
        resources:
          requests:
            memory: "2Gi"
            cpu: "500m"
          limits:
            memory: "4Gi"
            cpu: "1000m"
        volumeMounts:
        - name: prometheus-config
          mountPath: /etc/prometheus
        - name: prometheus-storage
          mountPath: /prometheus
        livenessProbe:
          httpGet:
            path: /-/healthy
            port: 9090
          initialDelaySeconds: 30
          periodSeconds: 10
        readinessProbe:
          httpGet:
            path: /-/ready
            port: 9090
          initialDelaySeconds: 5
          periodSeconds: 5
      volumes:
      - name: prometheus-config
        configMap:
          name: prometheus-config
      - name: prometheus-storage
        persistentVolumeClaim:
          claimName: prometheus-storage

---
apiVersion: v1
kind: Service
metadata:
  name: prometheus
  namespace: vitrip-monitoring
spec:
  selector:
    app: prometheus
  ports:
  - port: 9090
    targetPort: 9090
    name: prometheus

---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: prometheus-storage
  namespace: vitrip-monitoring
spec:
  accessModes:
  - ReadWriteOnce
  storageClassName: fast-ssd
  resources:
    requests:
      storage: 100Gi

---
apiVersion: v1
kind: ConfigMap
metadata:
  name: prometheus-config
  namespace: vitrip-monitoring
data:
  prometheus.yml: |
    global:
      scrape_interval: 15s
      evaluation_interval: 15s

    rule_files:
    - "alert_rules.yml"

    alerting:
      alertmanagers:
      - static_configs:
        - targets:
          - alertmanager:9093

    scrape_configs:
    # Business Services metrics
    - job_name: 'search-service'
      static_configs:
      - targets: ['search-service.vitrip-platform:9090']

    - job_name: 'pricing-service'
      static_configs:
      - targets: ['pricing-service.vitrip-platform:9090']

    - job_name: 'booking-service'
      static_configs:
      - targets: ['booking-service.vitrip-platform:9090']

    - job_name: 'tour-builder-service'
      static_configs:
      - targets: ['tour-builder-service.vitrip-platform:9090']

    # Infrastructure metrics
    - job_name: 'traefik'
      static_configs:
      - targets: ['traefik.vitrip-platform:9100']

    - job_name: 'postgresql'
      static_configs:
      - targets: ['postgres-exporter.vitrip-data:9187']

    - job_name: 'redis'
      static_configs:
      - targets: ['redis-exporter.vitrip-data:9121']

    # Kubernetes cluster monitoring
    - job_name: 'kubernetes-pods'
      kubernetes_sd_configs:
      - role: pod
      relabel_configs:
      - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_scrape]
        action: keep
        regex: true

  alert_rules.yml: |
    groups:
    - name: vitrip-alerts
      rules:
      - alert: HighErrorRate
        expr: rate(http_requests_total{status=~"5.."}[5m]) > 0.1
        for: 5m
        labels:
          severity: critical
        annotations:
          summary: "High error rate detected"
          description: "Error rate is above 10% for 5 minutes"

      - alert: DatabaseDown
        expr: up{job="postgresql"} == 0
        for: 1m
        labels:
          severity: critical
        annotations:
          summary: "PostgreSQL is down"

      - alert: HighMemoryUsage
        expr: (container_memory_usage_bytes / container_spec_memory_limit_bytes) > 0.9
        for: 10m
        labels:
          severity: warning
        annotations:
          summary: "High memory usage"

Grafana Dashboard

# grafana.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: grafana
  namespace: vitrip-monitoring
  labels:
    app: grafana
    component: monitoring
spec:
  replicas: 1
  selector:
    matchLabels:
      app: grafana
  template:
    metadata:
      labels:
        app: grafana
        component: monitoring
    spec:
      containers:
      - name: grafana
        image: grafana/grafana:10.2.0
        ports:
        - containerPort: 3000
          name: grafana
        env:
        - name: GF_SECURITY_ADMIN_PASSWORD
          valueFrom:
            secretKeyRef:
              name: grafana-credentials
              key: password
        - name: GF_INSTALL_PLUGINS
          value: "grafana-piechart-panel,grafana-worldmap-panel"
        resources:
          requests:
            memory: "512Mi"
            cpu: "250m"
          limits:
            memory: "1Gi"
            cpu: "500m"
        volumeMounts:
        - name: grafana-storage
          mountPath: /var/lib/grafana
        - name: grafana-config
          mountPath: /etc/grafana/provisioning
        livenessProbe:
          httpGet:
            path: /api/health
            port: 3000
          initialDelaySeconds: 30
          periodSeconds: 10
        readinessProbe:
          httpGet:
            path: /api/health
            port: 3000
          initialDelaySeconds: 5
          periodSeconds: 5
      volumes:
      - name: grafana-storage
        persistentVolumeClaim:
          claimName: grafana-storage
      - name: grafana-config
        configMap:
          name: grafana-config

---
apiVersion: v1
kind: Service
metadata:
  name: grafana
  namespace: vitrip-monitoring
spec:
  selector:
    app: grafana
  ports:
  - port: 3000
    targetPort: 3000
    name: grafana

---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: grafana-storage
  namespace: vitrip-monitoring
spec:
  accessModes:
  - ReadWriteOnce
  storageClassName: standard
  resources:
    requests:
      storage: 10Gi

---
apiVersion: traefik.containo.us/v1alpha1
kind: IngressRoute
metadata:
  name: grafana-route
  namespace: vitrip-monitoring
spec:
  entryPoints:
  - websecure
  routes:
  - match: Host(`monitoring.vitrip.store`)
    kind: Rule
    services:
    - name: grafana
      port: 3000
  tls:
    certResolver: letsencrypt

CI/CD Pipeline

GitLab CI Configuration

# .gitlab-ci.yml
stages:
  - test
  - build
  - deploy-staging
  - deploy-production

variables:
  DOCKER_REGISTRY: registry.vitrip.store
  KUBECONFIG: /tmp/kubeconfig

# Test Stage
test-go-services:
  stage: test
  image: golang:1.21
  script:
    - cd services/
    - go mod tidy
    - go test ./... -v -race -coverprofile=coverage.out
    - go tool cover -html=coverage.out -o coverage.html
  artifacts:
    reports:
      coverage_format: cobertura
      coverage_path: services/coverage.out
    paths:
      - services/coverage.html
  coverage: '/coverage: \d+\.\d+% of statements/'

test-rust-ingestion:
  stage: test
  image: rust:1.75
  script:
    - cd ingestion/
    - cargo test --verbose
    - cargo clippy -- -D warnings
    - cargo fmt -- --check
  cache:
    paths:
      - ingestion/target/

test-frontend:
  stage: test
  image: node:20-alpine
  script:
    - cd frontend/
    - npm ci
    - npm run test:coverage
    - npm run lint
    - npm run type-check
  artifacts:
    reports:
      coverage_format: cobertura
      coverage_path: frontend/coverage/cobertura-coverage.xml
  cache:
    paths:
      - frontend/node_modules/

# Security Scanning
security-scan:
  stage: test
  image: aquasecurity/trivy:latest
  script:
    - trivy fs --exit-code 1 --no-progress --severity HIGH,CRITICAL .
  allow_failure: true

# Build Stage
build-search-service:
  stage: build
  image: docker:24.0.7
  services:
    - docker:24.0.7-dind
  script:
    - docker build -t $DOCKER_REGISTRY/search-service:$CI_COMMIT_SHA services/search/
    - docker build -t $DOCKER_REGISTRY/search-service:latest services/search/
    - echo $REGISTRY_PASSWORD | docker login $DOCKER_REGISTRY -u $REGISTRY_USER --password-stdin
    - docker push $DOCKER_REGISTRY/search-service:$CI_COMMIT_SHA
    - docker push $DOCKER_REGISTRY/search-service:latest
  only:
    changes:
      - services/search/**/*
      - services/shared/**/*

build-pricing-service:
  stage: build
  image: docker:24.0.7
  services:
    - docker:24.0.7-dind
  script:
    - docker build -t $DOCKER_REGISTRY/pricing-service:$CI_COMMIT_SHA services/pricing/
    - docker build -t $DOCKER_REGISTRY/pricing-service:latest services/pricing/
    - echo $REGISTRY_PASSWORD | docker login $DOCKER_REGISTRY -u $REGISTRY_USER --password-stdin
    - docker push $DOCKER_REGISTRY/pricing-service:$CI_COMMIT_SHA
    - docker push $DOCKER_REGISTRY/pricing-service:latest
  only:
    changes:
      - services/pricing/**/*
      - services/shared/**/*

build-booking-service:
  stage: build
  image: docker:24.0.7
  services:
    - docker:24.0.7-dind
  script:
    - docker build -t $DOCKER_REGISTRY/booking-service:$CI_COMMIT_SHA services/booking/
    - docker build -t $DOCKER_REGISTRY/booking-service:latest services/booking/
    - echo $REGISTRY_PASSWORD | docker login $DOCKER_REGISTRY -u $REGISTRY_USER --password-stdin
    - docker push $DOCKER_REGISTRY/booking-service:$CI_COMMIT_SHA
    - docker push $DOCKER_REGISTRY/booking-service:latest
  only:
    changes:
      - services/booking/**/*
      - services/shared/**/*

build-tour-builder-service:
  stage: build
  image: docker:24.0.7
  services:
    - docker:24.0.7-dind
  script:
    - docker build -t $DOCKER_REGISTRY/tour-builder-service:$CI_COMMIT_SHA services/tour-builder/
    - docker build -t $DOCKER_REGISTRY/tour-builder-service:latest services/tour-builder/
    - echo $REGISTRY_PASSWORD | docker login $DOCKER_REGISTRY -u $REGISTRY_USER --password-stdin
    - docker push $DOCKER_REGISTRY/tour-builder-service:$CI_COMMIT_SHA
    - docker push $DOCKER_REGISTRY/tour-builder-service:latest
  only:
    changes:
      - services/tour-builder/**/*
      - services/shared/**/*

build-ingestion-processor:
  stage: build
  image: docker:24.0.7
  services:
    - docker:24.0.7-dind
  script:
    - docker build -t $DOCKER_REGISTRY/ingestion-processor:$CI_COMMIT_SHA ingestion/
    - docker build -t $DOCKER_REGISTRY/ingestion-processor:latest ingestion/
    - echo $REGISTRY_PASSWORD | docker login $DOCKER_REGISTRY -u $REGISTRY_USER --password-stdin
    - docker push $DOCKER_REGISTRY/ingestion-processor:$CI_COMMIT_SHA
    - docker push $DOCKER_REGISTRY/ingestion-processor:latest
  only:
    changes:
      - ingestion/**/*

build-frontend-app:
  stage: build
  image: docker:24.0.7
  services:
    - docker:24.0.7-dind
  script:
    - docker build -t $DOCKER_REGISTRY/frontend-app:$CI_COMMIT_SHA frontend/
    - docker build -t $DOCKER_REGISTRY/frontend-app:latest frontend/
    - echo $REGISTRY_PASSWORD | docker login $DOCKER_REGISTRY -u $REGISTRY_USER --password-stdin
    - docker push $DOCKER_REGISTRY/frontend-app:$CI_COMMIT_SHA
    - docker push $DOCKER_REGISTRY/frontend-app:latest
  only:
    changes:
      - frontend/**/*

# Staging Deployment
deploy-staging:
  stage: deploy-staging
  image: bitnami/kubectl:latest
  script:
    - echo $KUBE_CONFIG | base64 -d > $KUBECONFIG
    - kubectl config use-context staging
    # Update image tags to current commit
    - kubectl set image deployment/search-service search-service=$DOCKER_REGISTRY/search-service:$CI_COMMIT_SHA -n vitrip-platform
    - kubectl set image deployment/pricing-service pricing-service=$DOCKER_REGISTRY/pricing-service:$CI_COMMIT_SHA -n vitrip-platform
    - kubectl set image deployment/booking-service booking-service=$DOCKER_REGISTRY/booking-service:$CI_COMMIT_SHA -n vitrip-platform
    - kubectl set image deployment/tour-builder-service tour-builder-service=$DOCKER_REGISTRY/tour-builder-service:$CI_COMMIT_SHA -n vitrip-platform
    - kubectl set image deployment/ingestion-processor processor=$DOCKER_REGISTRY/ingestion-processor:$CI_COMMIT_SHA -n vitrip-ingestion
    - kubectl set image deployment/frontend-app frontend-app=$DOCKER_REGISTRY/frontend-app:$CI_COMMIT_SHA -n vitrip-platform
    # Wait for rollout to complete
    - kubectl rollout status deployment/search-service -n vitrip-platform --timeout=300s
    - kubectl rollout status deployment/booking-service -n vitrip-platform --timeout=300s
    # Run health checks
    - kubectl run health-check --image=curlimages/curl:8.5.0 --rm -i --restart=Never -- curl -f http://search-service:9090/health
  environment:
    name: staging
    url: https://staging.vitrip.store
  only:
    - develop

# Production Deployment
deploy-production:
  stage: deploy-production
  image: bitnami/kubectl:latest
  script:
    - echo $KUBE_CONFIG_PROD | base64 -d > $KUBECONFIG
    - kubectl config use-context production
    # Blue-Green Deployment Strategy
    - |
      for service in search-service pricing-service booking-service tour-builder-service; do
        kubectl patch deployment $service -n vitrip-platform -p '{"spec":{"strategy":{"type":"RollingUpdate","rollingUpdate":{"maxSurge":"50%","maxUnavailable":"0%"}}}}'
        kubectl set image deployment/$service $service=$DOCKER_REGISTRY/$service:$CI_COMMIT_SHA -n vitrip-platform
        kubectl rollout status deployment/$service -n vitrip-platform --timeout=600s
      done
    - kubectl set image deployment/frontend-app frontend-app=$DOCKER_REGISTRY/frontend-app:$CI_COMMIT_SHA -n vitrip-platform
    - kubectl rollout status deployment/frontend-app -n vitrip-platform --timeout=600s
    # Post-deployment health checks
    - sleep 30
    - kubectl run prod-health-check --image=curlimages/curl:8.5.0 --rm -i --restart=Never -- curl -f https://api.vitrip.store/v1/health
  environment:
    name: production
    url: https://vitrip.store
  when: manual
  only:
    - master

Backup & Disaster Recovery

PostgreSQL Backup Strategy

# postgres-backup.yaml
apiVersion: batch/v1
kind: CronJob
metadata:
  name: postgres-backup
  namespace: vitrip-data
spec:
  schedule: "0 2 * * *"  # Daily at 2 AM
  successfulJobsHistoryLimit: 7
  failedJobsHistoryLimit: 3
  jobTemplate:
    spec:
      template:
        spec:
          restartPolicy: OnFailure
          containers:
          - name: postgres-backup
            image: postgres:15
            command:
            - /bin/bash
            - -c
            - |
              # Full database backup
              TIMESTAMP=$(date +%Y%m%d_%H%M%S)
              BACKUP_FILE="vitrip_backup_${TIMESTAMP}.sql.gz"

              PGPASSWORD=$POSTGRES_PASSWORD pg_dump \
                -h postgresql \
                -U $POSTGRES_USER \
                -d vitrip \
                --verbose \
                --no-owner \
                --no-acl \
                | gzip > /backup/${BACKUP_FILE}

              # Upload to cloud storage (S3-compatible)
              aws s3 cp /backup/${BACKUP_FILE} s3://vitrip-backups/postgres/

              # Cleanup local files older than 7 days
              find /backup -name "vitrip_backup_*.sql.gz" -mtime +7 -delete

              echo "Backup completed: ${BACKUP_FILE}"
            env:
            - name: POSTGRES_USER
              valueFrom:
                secretKeyRef:
                  name: postgres-credentials
                  key: username
            - name: POSTGRES_PASSWORD
              valueFrom:
                secretKeyRef:
                  name: postgres-credentials
                  key: password
            - name: AWS_ACCESS_KEY_ID
              valueFrom:
                secretKeyRef:
                  name: s3-credentials
                  key: access-key-id
            - name: AWS_SECRET_ACCESS_KEY
              valueFrom:
                secretKeyRef:
                  name: s3-credentials
                  key: secret-access-key
            volumeMounts:
            - name: backup-storage
              mountPath: /backup
          volumes:
          - name: backup-storage
            persistentVolumeClaim:
              claimName: backup-storage

Redis Backup

# redis-backup.yaml
apiVersion: batch/v1
kind: CronJob
metadata:
  name: redis-backup
  namespace: vitrip-data
spec:
  schedule: "0 3 * * *"  # Daily at 3 AM
  jobTemplate:
    spec:
      template:
        spec:
          restartPolicy: OnFailure
          containers:
          - name: redis-backup
            image: redis:7.2-alpine
            command:
            - /bin/sh
            - -c
            - |
              TIMESTAMP=$(date +%Y%m%d_%H%M%S)

              # Create Redis backup
              redis-cli -h redis BGSAVE

              # Wait for backup to complete
              while [ $(redis-cli -h redis LASTSAVE) -eq $(redis-cli -h redis LASTSAVE) ]; do
                sleep 5
              done

              # Copy RDB file
              cp /data/dump.rdb /backup/redis_backup_${TIMESTAMP}.rdb

              # Compress and upload
              gzip /backup/redis_backup_${TIMESTAMP}.rdb
              aws s3 cp /backup/redis_backup_${TIMESTAMP}.rdb.gz s3://vitrip-backups/redis/

              echo "Redis backup completed"
            env:
            - name: AWS_ACCESS_KEY_ID
              valueFrom:
                secretKeyRef:
                  name: s3-credentials
                  key: access-key-id
            - name: AWS_SECRET_ACCESS_KEY
              valueFrom:
                secretKeyRef:
                  name: s3-credentials
                  key: secret-access-key
            volumeMounts:
            - name: redis-data
              mountPath: /data
            - name: backup-storage
              mountPath: /backup
          volumes:
          - name: redis-data
            persistentVolumeClaim:
              claimName: redis-storage-redis-0
          - name: backup-storage
            persistentVolumeClaim:
              claimName: backup-storage

Security Configuration

Network Policies

# network-policies.yaml
apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: vitrip-platform-network-policy
  namespace: vitrip-platform
spec:
  podSelector: {}
  policyTypes:
  - Ingress
  - Egress
  ingress:
  # Allow Traefik to reach services
  - from:
    - podSelector:
        matchLabels:
          app: traefik
    ports:
    - protocol: TCP
      port: 8080
  # Allow inter-service communication
  - from:
    - namespaceSelector:
        matchLabels:
          name: vitrip-platform
    ports:
    - protocol: TCP
      port: 8080
  egress:
  # Allow access to data namespace
  - to:
    - namespaceSelector:
        matchLabels:
          name: vitrip-data
    ports:
    - protocol: TCP
      port: 5432  # PostgreSQL
    - protocol: TCP
      port: 6379  # Redis
  # Allow external API calls
  - to: []
    ports:
    - protocol: TCP
      port: 443
    - protocol: TCP
      port: 80

---
apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: vitrip-data-network-policy
  namespace: vitrip-data
spec:
  podSelector: {}
  policyTypes:
  - Ingress
  ingress:
  # Only allow access from platform namespace
  - from:
    - namespaceSelector:
        matchLabels:
          name: vitrip-platform
  - from:
    - namespaceSelector:
        matchLabels:
          name: vitrip-ingestion

Pod Security Policy

# pod-security-policy.yaml
apiVersion: policy/v1beta1
kind: PodSecurityPolicy
metadata:
  name: vitrip-restricted
spec:
  privileged: false
  allowPrivilegeEscalation: false
  requiredDropCapabilities:
    - ALL
  volumes:
    - 'configMap'
    - 'emptyDir'
    - 'projected'
    - 'secret'
    - 'downwardAPI'
    - 'persistentVolumeClaim'
  runAsUser:
    rule: 'MustRunAsNonRoot'
  seLinux:
    rule: 'RunAsAny'
  fsGroup:
    rule: 'RunAsAny'

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: vitrip-restricted
rules:
- apiGroups: ['policy']
  resources: ['podsecuritypolicies']
  verbs: ['use']
  resourceNames: ['vitrip-restricted']

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: vitrip-restricted
roleRef:
  kind: ClusterRole
  name: vitrip-restricted
  apiGroup: rbac.authorization.k8s.io
subjects:
- kind: ServiceAccount
  name: default
  namespace: vitrip-platform
- kind: ServiceAccount
  name: default
  namespace: vitrip-data
- kind: ServiceAccount
  name: default
  namespace: vitrip-ingestion

Secrets Management

External Secrets Operator

# external-secrets.yaml
apiVersion: external-secrets.io/v1beta1
kind: SecretStore
metadata:
  name: vault-secret-store
  namespace: vitrip-platform
spec:
  provider:
    vault:
      server: "https://vault.vitrip.store"
      path: "secret"
      version: "v2"
      auth:
        kubernetes:
          mountPath: "kubernetes"
          role: "vitrip-platform"

---
apiVersion: external-secrets.io/v1beta1
kind: ExternalSecret
metadata:
  name: postgres-credentials
  namespace: vitrip-data
spec:
  refreshInterval: 1h
  secretStoreRef:
    name: vault-secret-store
    kind: SecretStore
  target:
    name: postgres-credentials
    creationPolicy: Owner
  data:
  - secretKey: username
    remoteRef:
      key: database/postgres
      property: username
  - secretKey: password
    remoteRef:
      key: database/postgres
      property: password
  - secretKey: url
    remoteRef:
      key: database/postgres
      property: url

---
apiVersion: external-secrets.io/v1beta1
kind: ExternalSecret
metadata:
  name: supplier-apis
  namespace: vitrip-platform
spec:
  refreshInterval: 6h
  secretStoreRef:
    name: vault-secret-store
    kind: SecretStore
  target:
    name: supplier-apis
    creationPolicy: Owner
  data:
  - secretKey: stuba-url
    remoteRef:
      key: suppliers/stuba
      property: api-url
  - secretKey: hometogo-url
    remoteRef:
      key: suppliers/hometogo
      property: api-url
  - secretKey: stuba-auth
    remoteRef:
      key: suppliers/stuba
      property: auth-token
  - secretKey: hometogo-auth
    remoteRef:
      key: suppliers/hometogo
      property: auth-token

Связанная документация

• Технологический стек: "Infrastructure | Docker + Kubernetes" и "Monitoring | Prometheus + Grafana" из Архитектура платформы
• Микросервисы: 4 Go services (SearchService, PricingService, BookingService, TourBuilderService) из Business Services
• API Gateway: Traefik конфигурация с Let's Encrypt из API Layer
• Базы данных: PostgreSQL схемы и структуры из Database Schema
• Кеширование: Redis кластер и TTL стратегии из Storage Layer
• Data Processing: Rust ingestion processor с Kafka из Ingestion Layer
• Frontend: React/Next.js deployment из Clients Layer
• API спецификации: REST endpoints и OpenAPI spec из API Contracts
